Qualified supplier of adjustable scaffolding prop for slab formwork construction

Qualified supplier of adjustable scaffolding prop for slab formwork construction

    • Qualified supplier of adjustable scaffolding prop for slab formwork construction
    • Qualified supplier of adjustable scaffolding prop for slab formwork construction
    • Qualified supplier of adjustable scaffolding prop for slab formwork construction
  • Qualified supplier of adjustable scaffolding prop for slab formwork construction

    Product Details:

    Place of Origin: China
    Brand Name: HORIZON
    Certification: ISO9001:2008
    Model Number: Shoring prop

    Payment & Shipping Terms:

    Minimum Order Quantity: None
    Price: Negotiatable
    Packaging Details: In bundle
    Delivery Time: 20 days
    Payment Terms: T/T, L/C
    Supply Ability: Large Qty.
    Contact Now
    Detailed Product Description
    Finishing: Galvanized Usage: Table Formwork
    Work Type: Heavy Duty Adjustment: Outer Thread

    Qualified supplier of adjustable scaffolding prop for slab formwork construction





    Adjustable scaffolding prop,steel prop,shoring prop,post shore,scaffolding,

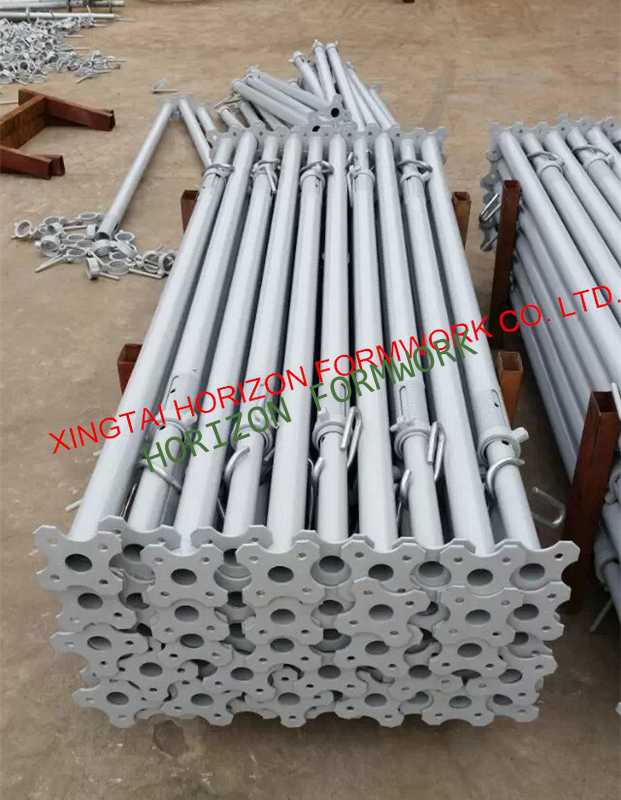

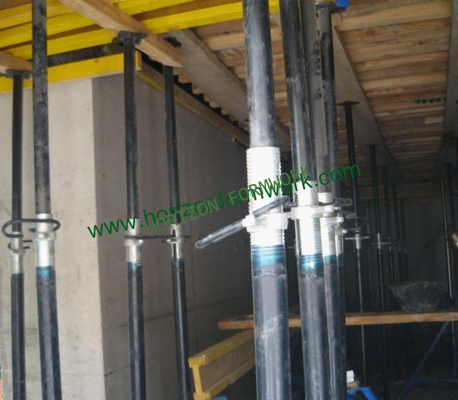

    Galvanized prop is another important scaffolding component of HORIZON formwork system, especially in the slab formwork. With the prop’s high loading capacity, low weight and stability, HORIZON slab formwork works safely and efficiently on site as well as cost-effective. Also, the prop is fast and easy for handling on site.



    Specification

    Loading Capacity (KN)

    Height (mm)

    Weight (kg)

    HZP 30-350

    30 KN at any height

    1970--3500

    20.3

    HZP 30-300

    30 KN at any height

    1650--3000

    17.6

    HZP 20-350

    20 KN at any height

    1970--3500

    15.8

    HZP 20-300

    20 KN at any height

    1650--3000

    14.0



    Advantages:
    1. High quality steel tubes ensures its high loading capacity.
    2. Various finishing are available, such as: hot-dipped galvanization, cold galvanization, powder coating and painting.
    3. Special design prevents the operator from hurting his hands between the inner and outer tube.

    4. The inner tube, pin and adjustable nut are designed protected against unintentional disengagement.
    5. With the same size of the plate and base plate, the prop heads are easily to insert in the inner tube and outer tube.
    6. The strong pallets ensure the transportation easily and safely.

    7. Can match well with doka or peri systems.
