Home ProductsAdjustable Scaffolding Props

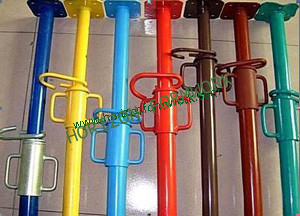

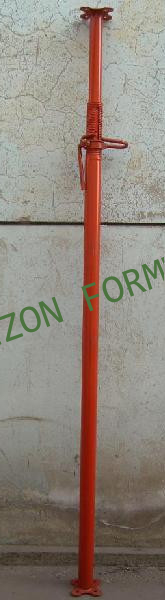

Steel prop, shoring prop, adjustable heigh, galvanized,scaffolding

Steel prop, shoring prop, adjustable heigh, galvanized,scaffolding

    • Steel prop, shoring prop, adjustable heigh, galvanized,scaffolding
    • Steel prop, shoring prop, adjustable heigh, galvanized,scaffolding
  • Steel prop, shoring prop, adjustable heigh, galvanized,scaffolding

    Product Details:

    Place of Origin: China
    Brand Name: HORIZON
    Certification: ISO9001:2008
    Model Number: Adjustable Scaffolding Props

    Payment & Shipping Terms:

    Minimum Order Quantity: None
    Price: Negotiatable
    Packaging Details: In bundle
    Delivery Time: 20 days
    Payment Terms: T/T, L/C
    Supply Ability: Large Qty.
    Contact Now
    Detailed Product Description
    Type: Scaffolding Parts Colour: Red
    Finishing: Painted Or Galvanized Usage: Construction
    Condition: New Place Of Origin: China

    scaffolding prop,steel prop,shoring prop,post shore,scaffolding





    Galvanized prop is another important scaffolding component of HORIZON formwork system, especially in the slab formwork. With the prop’s high loading capacity, low weight and stability, HORIZON slab formwork works safely and efficiently on site as well as cost-effective. Also, the prop is fast and easy for handling on site.

    Specification

    Loading Capacity (KN)

    Height (mm)

    Weight (kg)

    ZSP 30-350

    30 KN at any height

    1970--3500

    20.3

    ZSP 30-300

    30 KN at any height

    1650--3000

    17.6

    ZSP 20-350

    20 KN at any height

    1970--3500

    15.8

    ZSP 20-300

    20 KN at any height

    1650--3000

    14.0

    Advantages:
    1. High quality steel tubes ensures its high loading capacity.
    2. Various finishing are available, such as: hot-dipped galvanization, cold galvanization, powder coating and painting.
    3. Special design prevents the operator from hurting his hands between the inner and outer tube.

    4. The inner tube, pin and adjustable nut are designed protected against unintentional disengagement.
    5. With the same size of the plate and base plate, the prop heads are easily to insert in the inner tube and outer tube.
    6. The strong pallets ensure the transportation easily and safely.

    7. Can match well with doka or peri systems.
