| Place of Origin: | China |
| Brand Name: | HORIZON |
| Certification: | ISO9001:2008 |
| Model Number: | Steel prop |
| Minimum Order Quantity: | None |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | In bundle |
| Delivery Time: | 20 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Large Qty. |
| Type: | Scaffolding Parts | Finishing: | Self Colour Or Galvanized |
|---|---|---|---|
| Material: | Ductile Casting Iron | Adjusting Handle: | Nut. Cup |
| Usage: | Construction | Place Of Origin: | China |

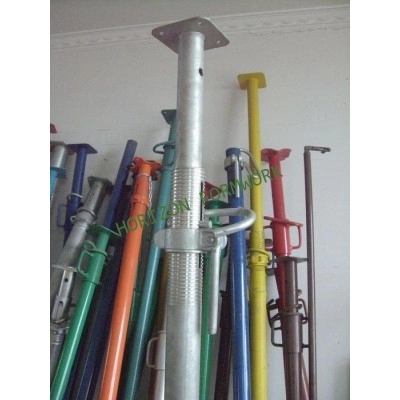

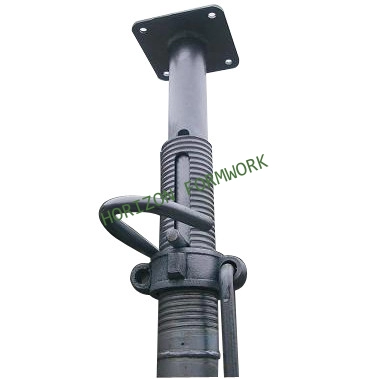

Adjustable scaffolding prop, Steel prop for formwork, post shore, scaffolding
Galvanized prop is another important scaffolding component of HORIZON formwork system, especially in the slab formwork. With the prop’s high loading capacity, low weight and stability, HORIZON slab formwork works safely and efficiently on site as well as cost-effective. Also, the prop is fast and easy for handling on site.
|
Specification |
Loading Capacity (KN) |
Height (mm) |
Weight (kg) |
|
HZP 30-350 |
30 KN at any height |
1970--3500 |
20.3 |
|
HZP 30-300 |
30 KN at any height |
1650--3000 |
17.6 |
|
HZP 20-350 |
20 KN at any height |
1970--3500 |
15.8 |
|
HZP 20-300 |
20 KN at any height |
1650--3000 |
14.0 |
Advantages:
1. High quality steel tubes ensures its high loading capacity.
2. Various finishing are available, such as: hot-dipped galvanization, cold galvanization, powder coating and painting.
3. Special design prevents the operator from hurting his hands between the inner and outer tube.
4. The inner tube, pin and adjustable nut are designed protected against unintentional disengagement.
5. With the same size of the plate and base plate, the prop heads are easily to insert in the inner tube and outer tube.
6. The strong pallets ensure the transportation easily and safely.
7. Can match well with doka and peri formwork systems.
