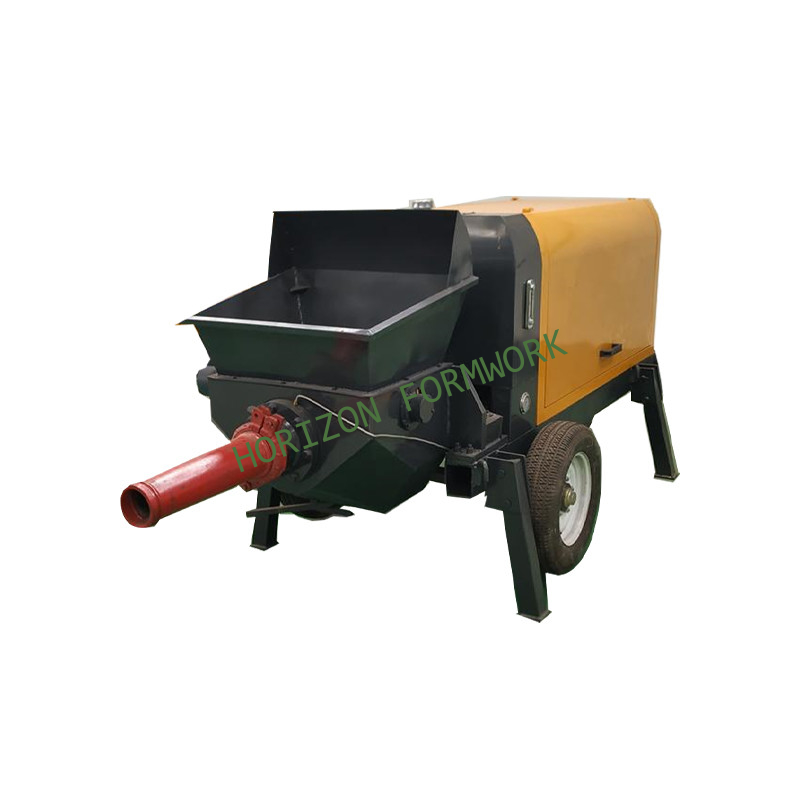

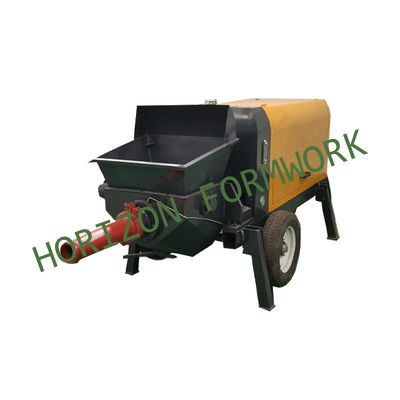

Small Concrete Pump with flexible hose, High Quality Fine Stone Trailer Pump

Small Concrete Pump with flexible hose, High Quality Fine Stone Trailer Pump

    • small.img.alt
    • small.img.alt
    • small.img.alt
  • large.img.alt

    Product Details:

    Place of Origin: China
    Brand Name: MG
    Certification: CE
    Model Number: MG20

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Please ask
    Packaging Details: In carton
    Delivery Time: 10 days
    Payment Terms: T/T, L/C
    Supply Ability: 300/month
    Contact Now
    Detailed Product Description
    Application: Concrete Pump,Trailer Pump Color: Any Color
    Warranty: 1 Year Name: Concrete Pump Parts Rubber Piston,Durable CIFA DN230mm Concrete Pump Piston Cups 237693
    After-sales Service Provided: Online Support,Video Technical Support Packing: Carton
    Type: Complete Piston Or Separated Concrete Piston,Manual/Hydraulic Pressure

    Small Concrete Pump with flexible hose, High Quality Fine Stone Trailer Pump



    What is a concrete pump?

    A concrete pump is a tool used for transferring freshly mixed liquid concrete to the location on a construction site where it is needed. It works using a valve system and the basic principles of hydraulics.



    When concrete is required, a mixing truck first mixes concrete within its rotating drum. Then the truck pours its liquid concrete into a hopper, which continues to churn the concrete so it will not solidify. From there, the concrete pump sucks the liquid concrete out of the hopper, through a valve system, and into the area where it needs to be laid down, sometimes with the use of auxiliary hoses



    Product Type MQ22-20
    Max. Theoretical throughput 10m3/h
    Motor power 22kw
    Aggregate size 0.5-1.5cm
    Horizontal transport distance 120m
    Vertical Conveying Distance 40m
    Hopper loading height 700mm
    Weight 1200kg
    Pipe Diameter 80mm
    Dimensions 2600*900*1400mm



    Advantages of 22-20 type fine stone concrete pump:

    1. This pump can be equipped with diesel engine power

    2. The pump has casters, easy to move, high pumping pressure and long pumping distance

    3. Stable performance, compact structure, low failure rate and long life

    4. Good continuity, fast conveying efficiency, simple operation, time-saving and labor-saving

    Small Concrete Pump with flexible hose, High Quality Fine Stone Trailer Pump

    Small Concrete Pump with flexible hose, High Quality Fine Stone Trailer Pump



    Application on site:

    Small Concrete Pump with flexible hose, High Quality Fine Stone Trailer Pump



    Packing & delivery:

    Small Concrete Pump with flexible hose, High Quality Fine Stone Trailer Pump
