Single side formwork for retaining wall

Single side formwork for retaining wall

    • Single side formwork for retaining wall
    • Single side formwork for retaining wall
    • Single side formwork for retaining wall
  • Single side formwork for retaining wall

    Product Details:

    Place of Origin: China
    Brand Name: HORIZON
    Model Number: Concrete Wall Formwork

    Payment & Shipping Terms:

    Minimum Order Quantity: None
    Price: Negotiatable
    Packaging Details: In bundle
    Delivery Time: 20 days
    Payment Terms: T/T, L/C
    Contact Now
    Detailed Product Description
    Usage: Construction Material: H20 Beam, Steel Walling, Plywood
    Type: Column Formwork Supporting: By Push-pull Brace
    Site Supervision: Yes Condition: New

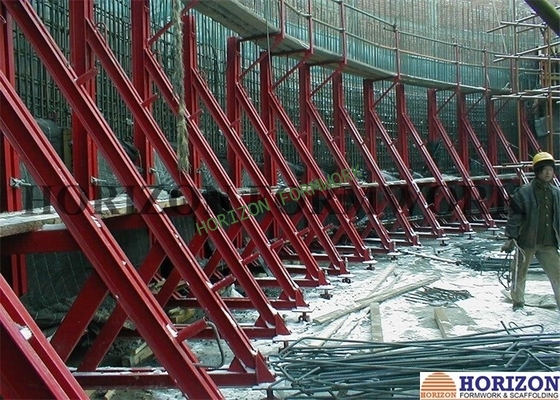

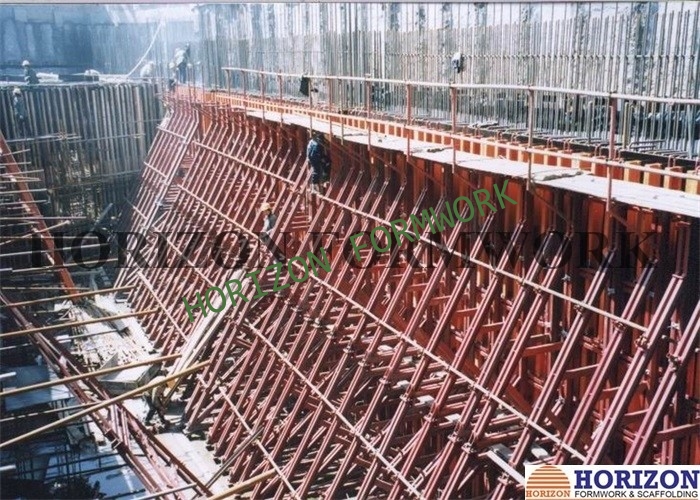

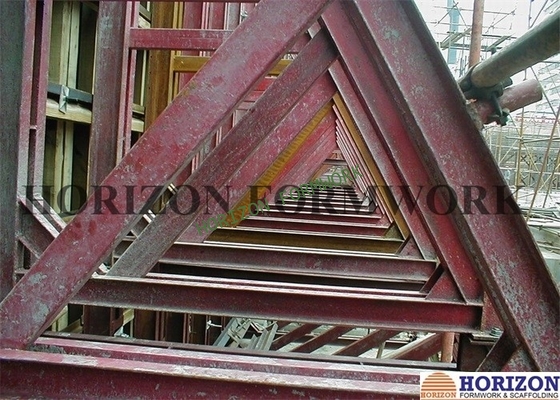

    Single side bracket formwork for retaining wall





    In case placing panels face to face is not possible and thus tie-rod cannot be used, the concrete pressure has to be withstood by additional external structures. Then, with wall formwork system, HORIZON Single-sided formwork can help.

    Advantages:
    1. The concrete pressure are reliably transferred to the embedded anchor systems.
    2. The single-sided bracket is compatible with HORIZON’s wall formwork. The maximum wall height is up to 7.5 m.
    3. Once assembled, each set of bracket and panels can be easily lifted and moved to the required pouring location.
    4. For safety, when working at high elevations, working platforms can be fixed into these systems

    Any need, pls contact: sales@horizonform.comSingle side formwork for retaining wall
