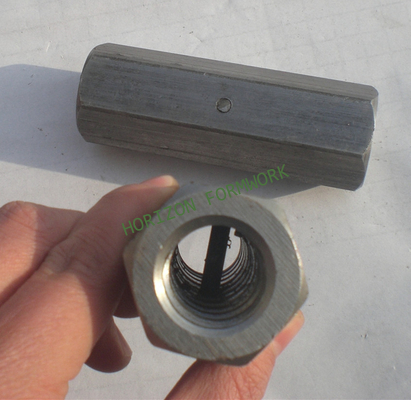

Weldable steel Hex nuts and couplers, connecting reinforcement bars, with center pin

Weldable steel Hex nuts and couplers, connecting reinforcement bars, with center pin

Material : steel 45#

Size : SW36mm, dia 20mm, length=110mm,

Weight : 0.66 kg

Finishing : galvanized, or self coulor as request.

Hex nut is used as normal fasteners together with washer plate; Some times used as steel bar couplers, connecting two bars in the reinforcement work. When used as coupler, usually a stop-pin is fixed in the middle of the nut, in order to secure the screwed length of the bar.

Different size are available: for bar dia15mm, 20mm, 26mm, and with min. length L=30mm to max. L=130mm, depending on the usage.

Weldable and casting iron hexagonal nuts are both available according to the site requirments.

Xingtai Horizon Formwork Co., Ltd.  is a professional manufacturer of formwork materials and scaffolding accessories since 2006. We are not only providing excellent products, but also offering a comprehensive and complete concrete formwork and scaffolding solution to clients.
The main products we offer : wall formwork, slab formwork, scaffolding system, timber beam H20, steel props, formwork accessories (wing nut, tie rod, water stop, hexagonal nut, formwork clamp, rapid clamp), scaffolding fittings etc..
