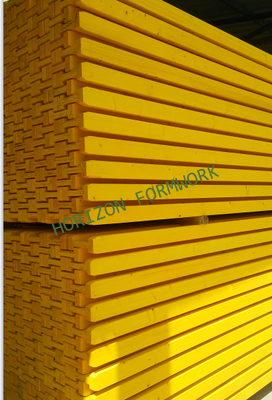

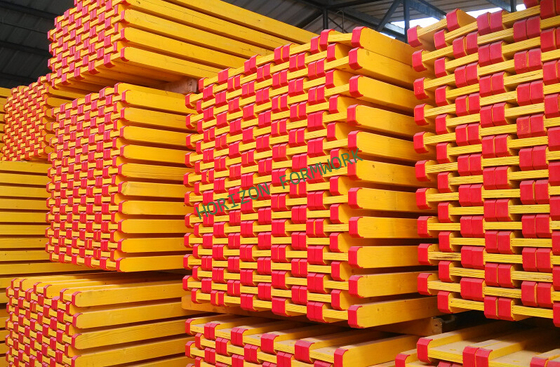

H20 Timber beam for concrete formwork construction

H20 Timber beam for concrete formwork construction

    • H20 Timber beam for concrete formwork construction
    • H20 Timber beam for concrete formwork construction
    • H20 Timber beam for concrete formwork construction
  • H20 Timber beam for concrete formwork construction

    Product Details:

    Place of Origin: China
    Brand Name: HORIZON
    Certification: ISO9001:2008
    Model Number: H20 timber beam

    Payment & Shipping Terms:

    Minimum Order Quantity: None
    Price: Negotiatable

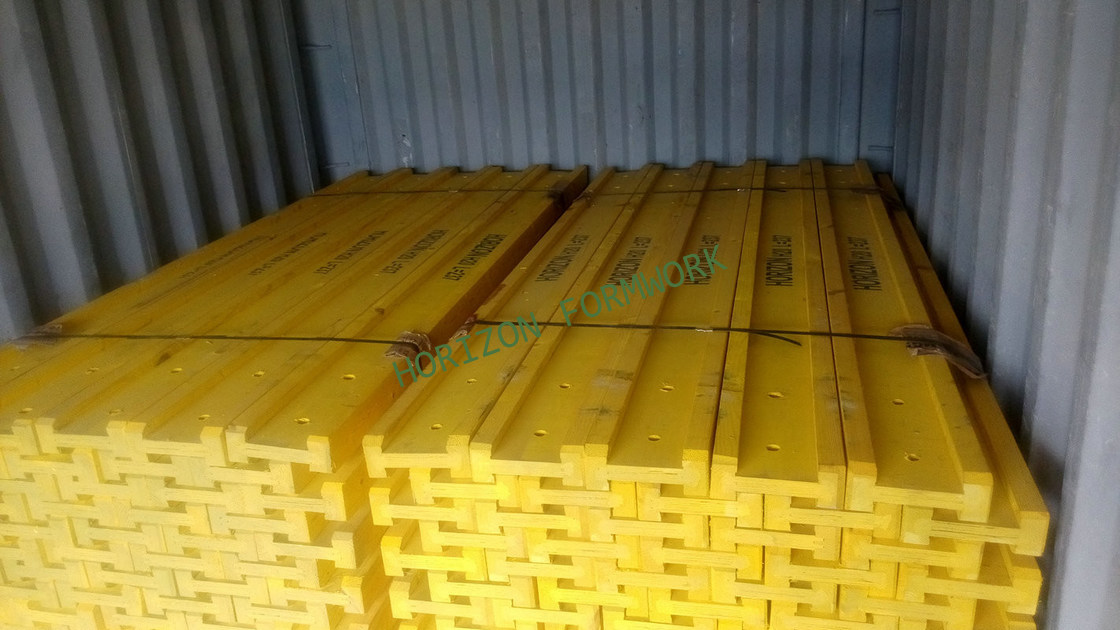

    Packaging Details: In bundle
    Delivery Time: 20 days
    Payment Terms: T/T, L/C
    Detailed Product Description
    Usage: Construction Material: Finland Spruce
    Water-proof: Yes Condition: New
    Supplier: Manufacturer

    H20 Timber beam is used for concrete formwork construction, widely applied in slab formwork system, wall formwork system, column formwork system, timber structures, and other temporary bearing structures.





    Characteristics:


    Solid flange: Sawed-Pine or Spruce from Finland, High quality spruce, High stability.
    B) Web: Birch or poplar or larch plywood; High durability; High load bearing capacity
    C) Treated by Dynea glue exterior used weather & water-proof
    D) Beam ends sealed:
    Protect from moisture and UV; Reduce damage; Increase service life
    E) With high standardization, universal property, fast operation.
    F) High stiffness, light weight, strong load-carrying capability.
    G) Low cost, recycle resource.
    Technical Information:
    Standard Size 200mm(H)*80mm(W)*40mm(flange thickness)* 27mm(web thickness)
    Standard Length (M) 2.45,2.65,2.90,3.30,3.60,3.90,4.50,4.90,5.90
    Other beam lengths or web thickness upon request
    Average Weight 4.8kg/m
    Bending moment max.5 KN/m
    Cutting action max 11.2KN
    Bending max 1/500
    Live load max 1.5 KN/m2
    Moisture content 12%-14%H20 Timber beam for concrete formwork construction
